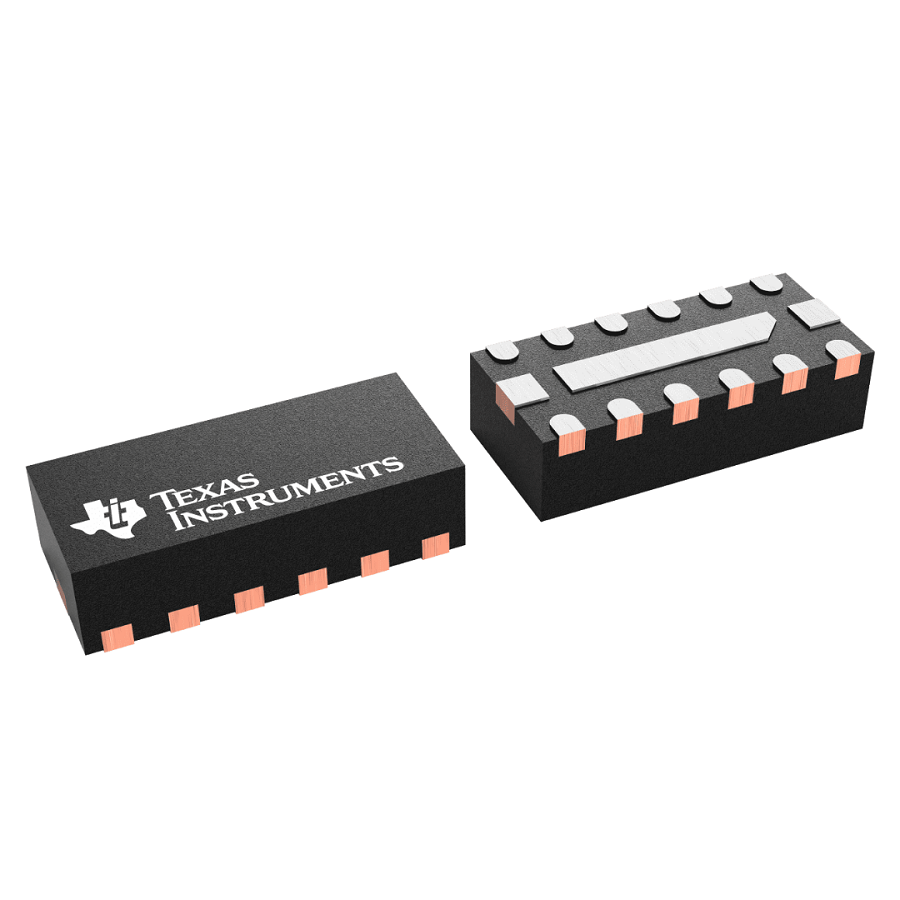

TPD6F002DSVR
Manufacturer:
Texas Instruments
Mfr.Part #:
TPD6F002DSVR
Datasheet:
Description:
EMI / RFI Filters WSON-12 SMD/SMT RC (Pi) 2nd 100 MHz 17 pF 57 dB 100 Ω
| Parameter | Value |
|---|---|
| Capacitance | 17 pF |
| Length | 3 mm |
| Width | 1.35 mm |
| Termination | Flat |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 12 |
| Height | 800 µm |
| Packaging | Reel |
| Depth | 1.45 mm |
| Thickness | 0.75 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Max Supply Voltage | 6 V |
| Ambient Temperature Range High | 85 °C |
| Number of Channels | 6 |
| Direction(Counting Sequence) | Unidirectional |
| Min Breakdown Voltage | 6 V |
| Clamping Voltage | 15 V |
| ESD Protection | Yes |
| Max Junction Temperature (Tj) | 150 °C |
| Attenuation Value | 57 dB |
| Chemistry/Technology | RC (Pi) |
| Schedule B | 8542390000 |
| Cutoff Frequency | 100 MHz |
| Channel Resistance | 100 Ω |
| Filter Order | 2nd |
Stock: 1372
Distributors
pcbx
pcbxUnit Price$0.24970
Ext.Price$0.24970
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.24970 | $0.24970 |
| 10 | $0.21929 | $2.19290 |
| 50 | $0.19258 | $9.62900 |
| 100 | $0.16355 | $16.35500 |
| 500 | $0.13890 | $69.45000 |
| 1000 | $0.13251 | $132.51000 |
| 3000 | $0.12642 | $379.26000 |
| 5000 | $0.11809 | $590.45000 |
